In the global procurement of equipment for correctional institutions, there is a growing trend towards integrated facilities. By combining equipment with different functions, these facilities offer a superior solution for the management and operation of correctional institutions. Stainless steel toilet sink assemblies are such an integrated solution. This article will analyze why stainless steel toilet sink assemblies are becoming a trend and a new standard in prison procurement.

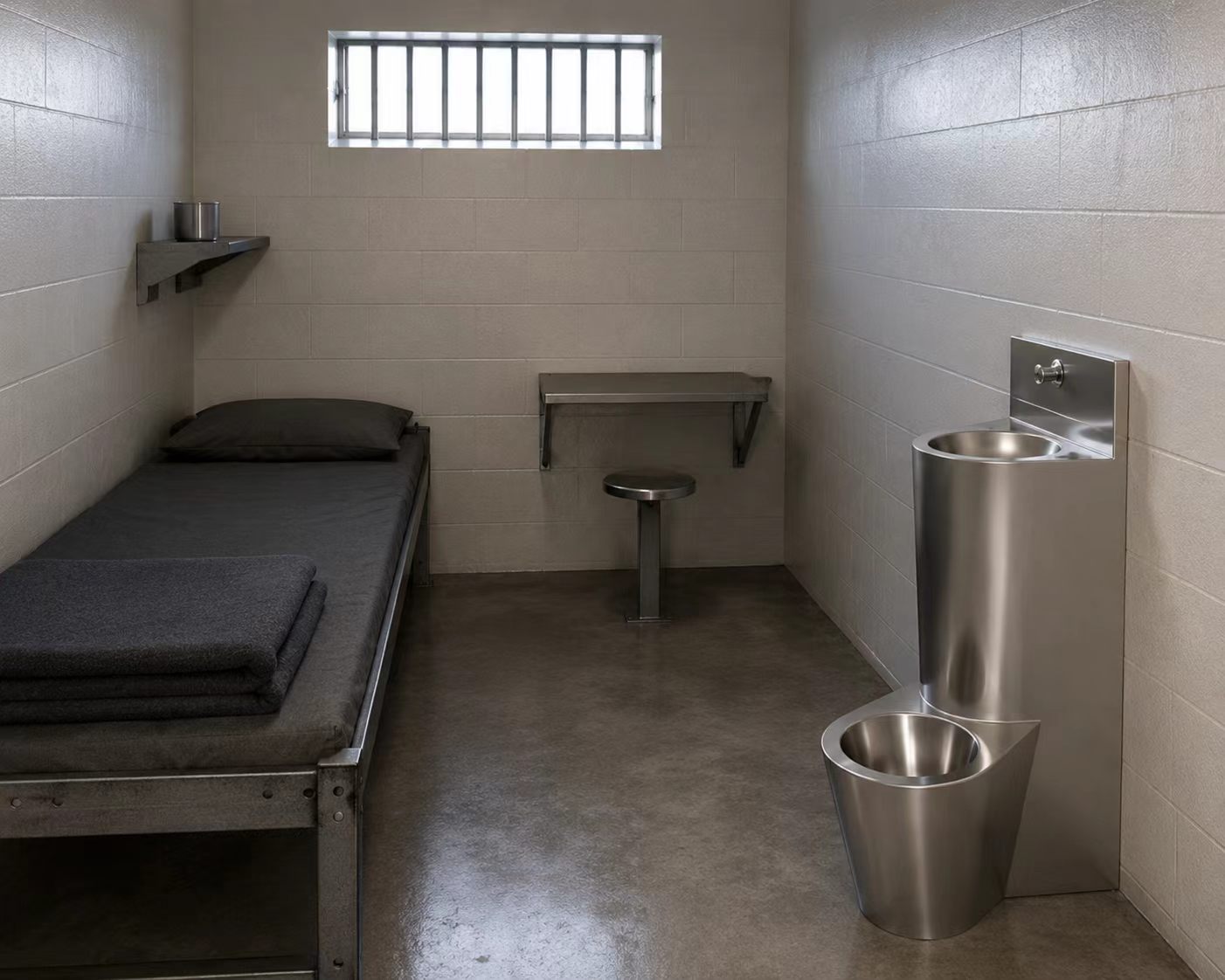

What Is a Prison Toilet Sink Combo?

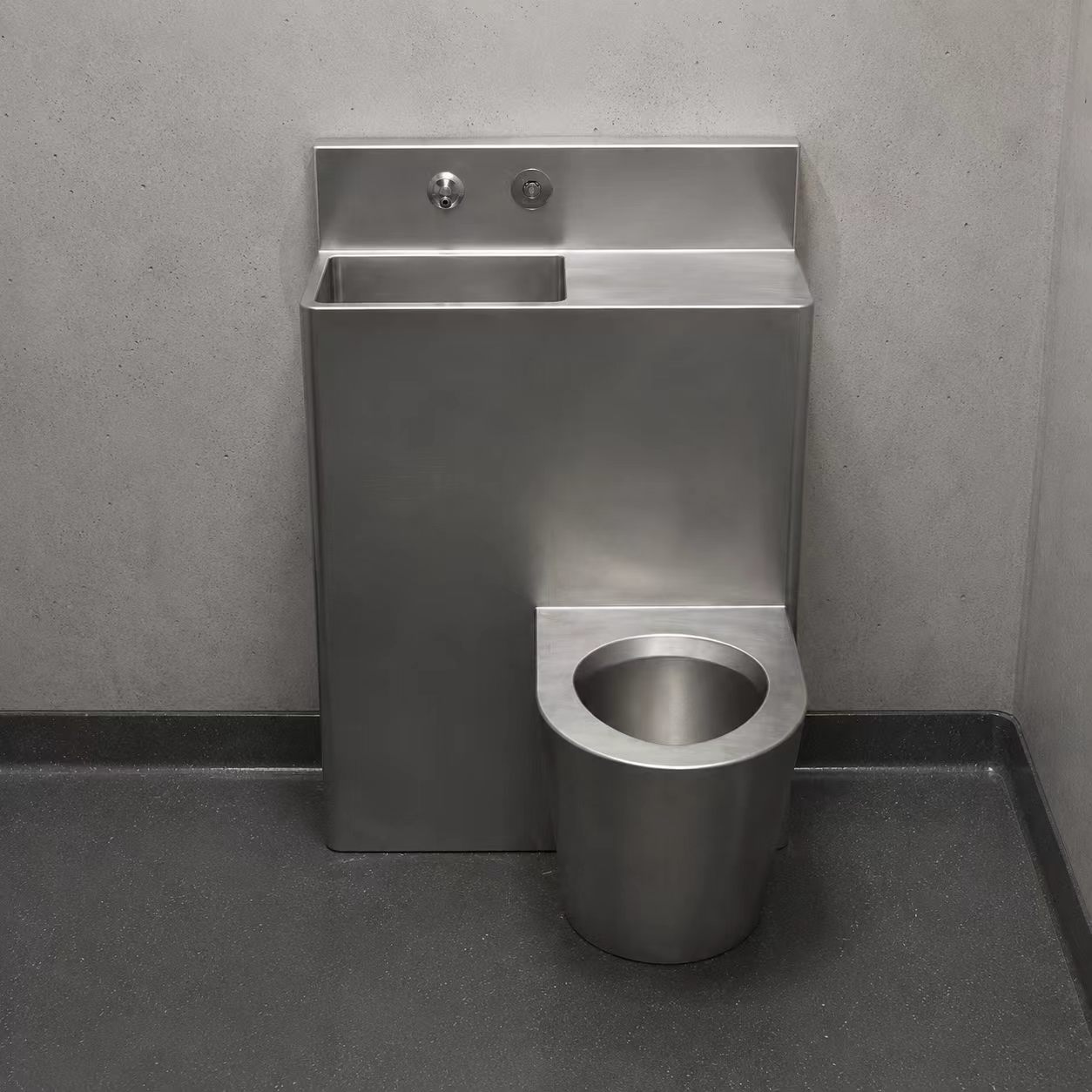

The prison toilet-sink combination is an integrated solution that combines the toilet and sink into one unit. The upper part is the sink, and the lower part is the toilet, all combined together through an integrated design.
This design allows for overlap between the toilet and sink, saving considerable space. It also reduces the number of devices needed by the prison, lowering procurement costs and potentially creating more free space within the prison.
Why Toilet Sink Combos Are the New Standard
1. Enhanced Security (Anti-Vandal & Anti-Ligature)
All pipes within the vandal-resistant toilet sink are designed internally, installed behind the wall, and connect to the inlet and outlet water pipes within the wall. There are no exposed pipes, eliminating the risk of pipe damage.
The stainless steel sink and toilet are welded together, not secured with screws, and no other parts use screws either; they are integrally welded, making it impossible to disassemble any parts for use as weapons, thus enhancing security.
2. Space Optimization
Stainless steel one-piece toilets are suitable for small cells with limited space. The toilet and sink are combined, eliminating the overlapping parts of the two, reducing the space occupied, and improving the utilization efficiency of the limited space in the prison.
3. Improved Hygiene
The integrated design of the stainless steel toilet and sink significantly reduces the number of hard-to-clean corners that were previously difficult to clean.
4. Reduced Maintenance Costs
One-piece toilets have fewer repair points, which means lower maintenance costs. In addition, stainless steel toilets have a long service life, which can reach more than 20 years, resulting in greater savings in maintenance costs in the long run.
Why Stainless Steel Is the Preferred Material
- Corrosion-resistant
- Durable (10–20+ years)
- Non-porous & hygienic
- Impact-resistant
The most significant characteristic that distinguishes stainless steel from other materials is its corrosion resistance. Stainless steel has a layer of chromium oxide on its surface, which prevents the iron within the material from oxidizing. Even if the surface is damaged, a new protective layer of chromium oxide will form.
With proper maintenance, stainless steel can last for over 20 years, reducing the need for frequent equipment replacements and increased operating costs.
The non-porous surface of stainless steel makes it less prone to dirt accumulation and resists bacterial and viral corrosion, reducing the spread of disease. Stainless steel can also be disinfected with disinfectants without corrosion.
Stainless steel has high strength and toughness, and is highly impact-resistant, capable of withstanding potential violent attacks, hence the name “vandal-resistant toilet and sink combination.”
Traditional Fixtures vs Integrated Combo Units
Compared to traditional designs, modular toilets have significant advantages in terms of space saving, safety, maintenance costs, and hygiene.
| Feature | Combo Unit | Traditional Setup |
| Space | Compact | Occupies more |
| Safety | High | Medium |
| Maintenance | Low | High |
| Hygiene | Better | Moderate |
How to Choose the Right Prison Toilet Sink Combo
Material: Commonly used stainless steel materials are 304 and 316. 304 stainless steel is corrosion-resistant, rust-proof, sturdy, and durable, making it the first choice for most stainless steel prison sink assemblies. 316 stainless steel offers better corrosion resistance in environments with high chlorine content and is often used in marine or chemical environments.

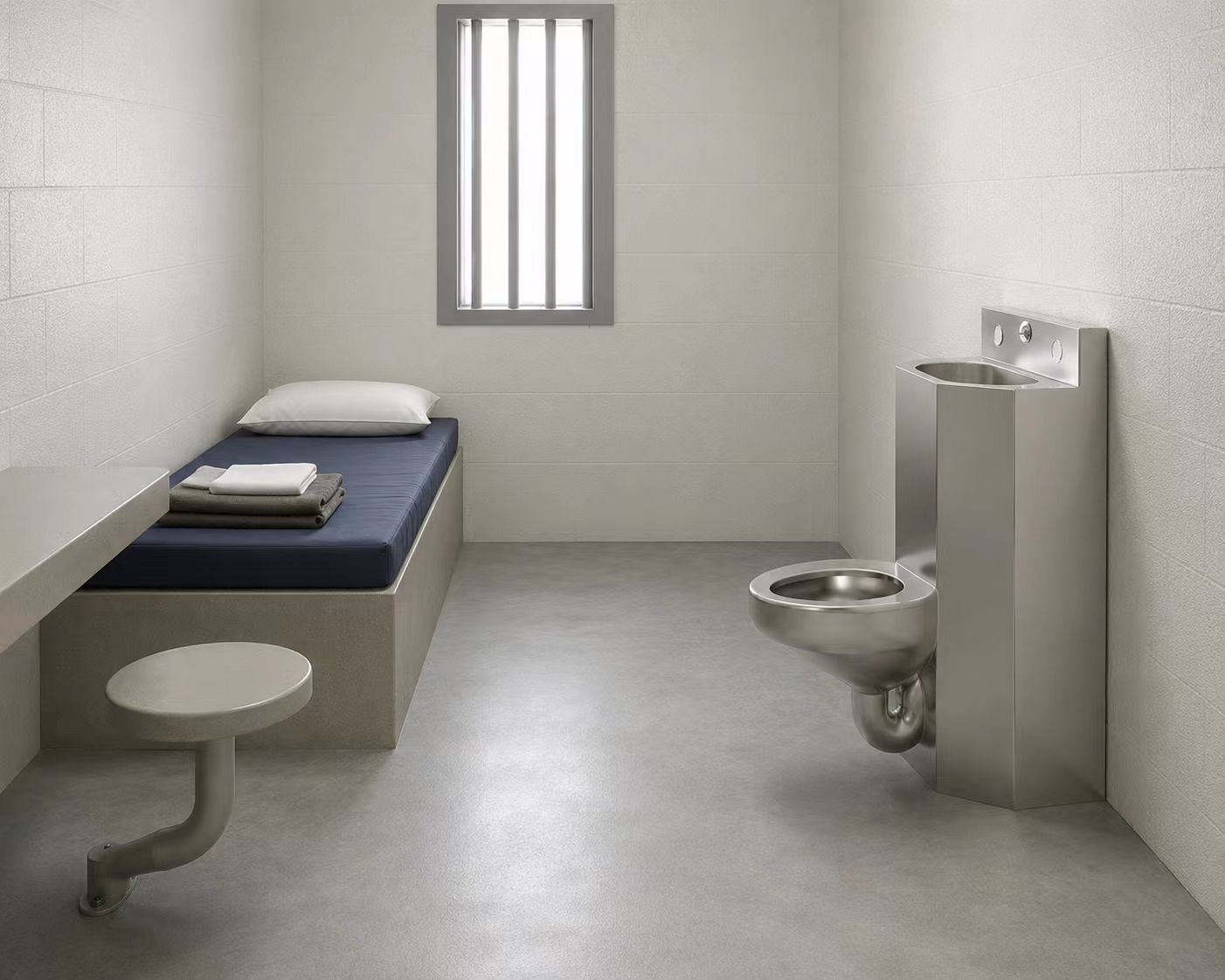

Installation Type: Stainless steel one-piece toilets typically have two installation methods: wall-mounted and floor-mounted. The choice depends on the site conditions, but in prisons, wall-mounted installation is usually chosen because the pipes are inside the walls and inaccessible to inmates.
Water Control System:
1. Washbasin Faucet: Timed water dispensing; water is only turned on for a few seconds (5-10 seconds) to prevent water waste from being left running. Mechanical control: Press-button or knob-type dispensing, manually controlled. Sensor-activated automatic dispensing: Automatically activated by an infrared sensor; water is only dispensed when a person is detected.
2. Toilet Flushing: Direct flushing; wastewater is flushed away by gravity and water pressure. Siphon flushing; the S-shaped drain pipe creates a pressure difference that draws away wastewater.
Supplier Experience: Experienced suppliers or factories can guarantee stable production quality, have more project experience, better meet the actual needs of the construction site, and provide stronger technical support and after-sales guarantees. These are all guarantees for the smooth progress of the project.
FAQ
What installation types are available for toilet sink combo units?
- wall-mounted stainless steel toilet sink combo
- floor-mounted prison toilet combo
- back-to-wall designs.
How does the sink work in a toilet sink combo system?
The sink spout can be either push-button, knob, or sensor-operated, designed according to the customer’s actual needs. Used water can be designed to flow into the toilet tank for reuse in flushing, or it can be designed not to be reused, depending on site requirements.
Where are one-piece toilets typically used?
- Prisons
- Detention centers
- Police station
- interrogation room
- Military facilities
- industrial sites.
What maintenance does a stainless steel toilet sink combo require?
Stainless steel toilet sink sets are very easy to maintain because stainless steel does not easily accumulate dirt. You only need to use water and a cloth to wipe the surface to keep it looking brand new.
Conclusion
The prison toilet and sink combination is not just a toilet, but a complete solution that takes into account economy, safety and hygiene, which is not available in individual facilities, and sets a benchmark for the procurement of facilities in correctional institutions.
Where to find an experienced supplier of stainless steel toilet sink combo ?
BaCai Stainless Steel Products Factory boasts 15 years of engineering experience, exporting to over 30 countries and regions and serving more than 200 engineering projects. We have a 15,000 square meter factory, over 100 experienced employees, more than 20 R&D personnel, and 5 production lines, enabling us to meet diverse customer customization needs and provide strong technical support and after-sales guarantee.
Our factory produces many types of prison toilet sink combinations, possessing deep technical expertise. We can customize according to your dimensions and style. Specific functions, such as faucets, drainage positions, sink shapes, and water control systems, can all be designed according to your requirements. Samples can be made first, and orders can be placed after sample confirmation.
